Drop Bottom Hoppers for Parts Handling

Powell Systems provides drop bottom and gravity-feed steel containers supporting capacities from 4000 lbs up to 6000 lbs. Specific models like the FM-250-S handle up to 4000 lbs, the FM-250-L accommodates 5000 lbs, and the 315-L drop bottom container supports up to 6000 lbs of parts and materials.

Containers are manufactured using heavy-duty corrugated steel with gauge options ranging from 7 gauge to 14 gauge. These rugged corrugated walls feature reinforced or continuous solid welded seams to deliver high structural rigidity, ensuring long-term container durability across demanding manufacturing operations, scrap handling, and fastener production facilities.

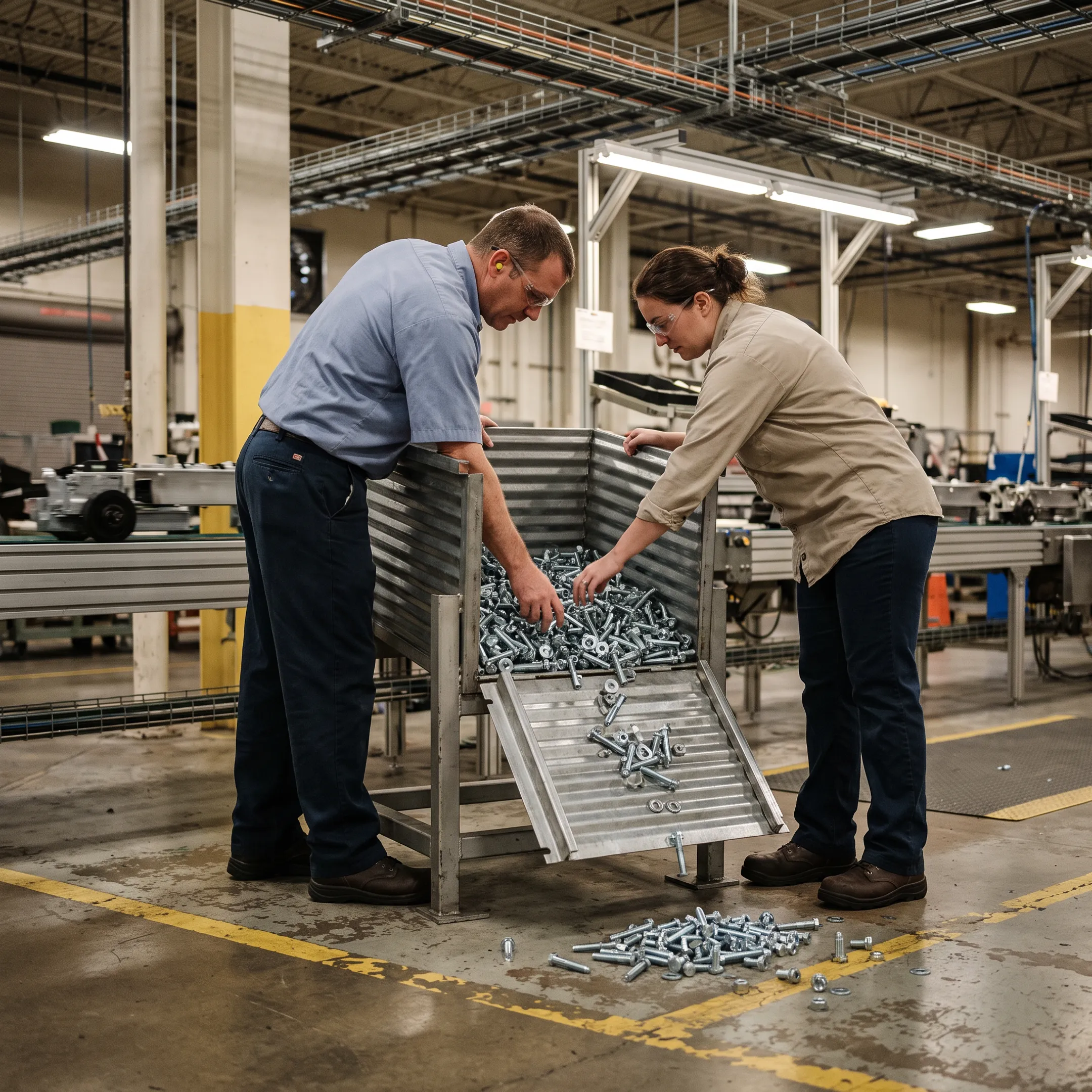

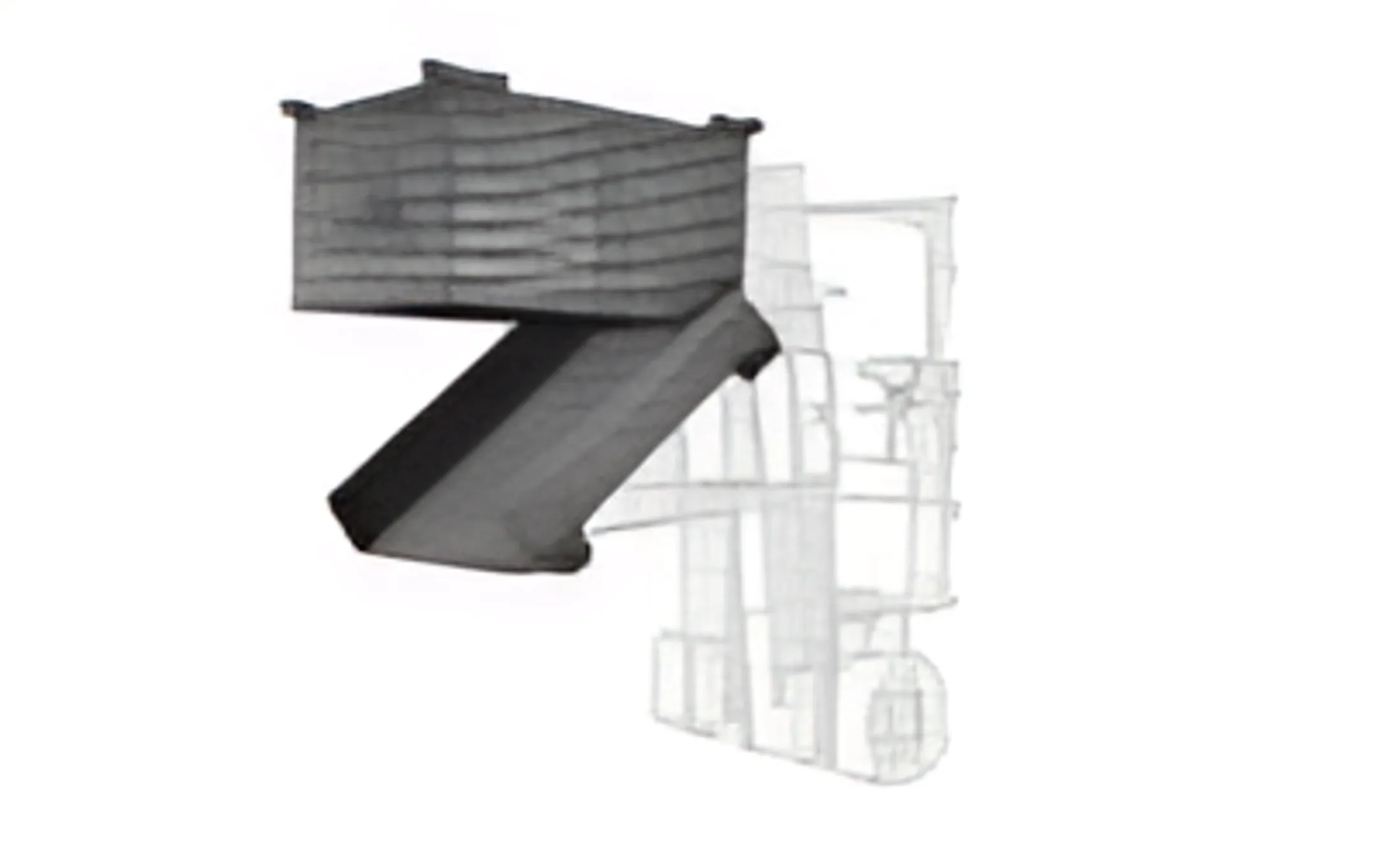

Parts discharge through the hinged bottom of the container, placing components directly at an operator's fingertips or feeding assembly workstations. Certain models are compatible with lift truck mast attachments for direct discharge without requiring a dedicated stand, while gravity-feed designs utilize matching workstands for quick container spotting.

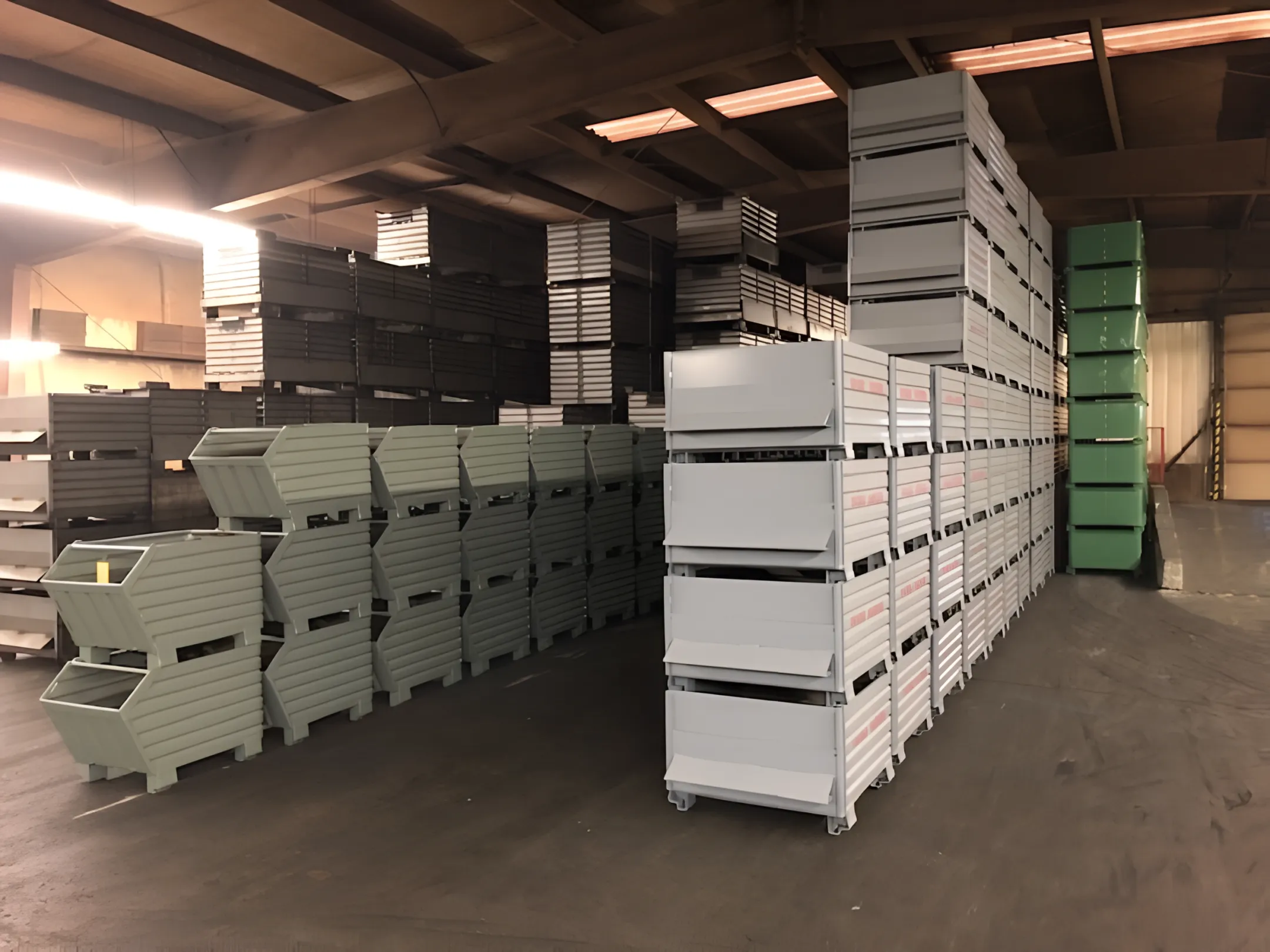

Containers are engineered with flexible forklift access, offering 2-way or 4-way entry configurations depending on the specific model. For instance, the Flowmatic container features formed offset stacking legs that enable 4-way forklift entry while facilitating safe, stable container stacking across production floors and warehouse spaces.

Yes, extensive custom design and engineering services are available for special operational requirements. Standard containers feature underclearance ranging from 4 to 12 inches and height variations in 3-inch increments. Custom dimensions, paint colors, and specialized container configurations can also be engineered to integrate seamlessly into specific assembly workstations.

Gravity-feed containers, such as the Flowmatic model, utilize gravity flow to present parts continuously at workstation level without protruding corners or lugs. Drop bottom containers feature a bottom discharge design that releases parts directly through a hinged floor, making them suitable for fast parts dumping or assembly line supply.
