Introduction
Bins of loose bolts, washers, and clips don't sort themselves. Before fasteners reach an assembly station, an inspection camera, or a packaging line, something has to turn that random pile into an orderly, controllable stream.
That's the job of mechanical feeding systems. They take bulk fasteners, packed into totes at unpredictable densities and orientations, and convert them into a controlled flow suited for downstream equipment. The exact approach depends on the fastener's geometry, material, surface finish, and the rate the line needs to run.
Many manufacturers struggle here. A part that feeds smoothly at one speed can jam, tangle, or misfeed at another. This guide follows that full journey from bulk loading through orientation, singulation, controlled discharge, and downstream transfer, rather than simply listing feeder types.
Key Takeaways
- Hoppers, vibratory bowls, centrifugal and step feeders, conveyors, and escapements work together as one controlled flow.
- Orienting, singulating, inspecting, and metering stay distinct jobs, even when one automated line handles them all.
- Shape, weight, surface finish, and interlocking risk drive which feeder fits each fastener.
- Steady feeding keeps assembly, counting, weighing, and packaging consistent while cutting manual handling.
What Are Mechanical Feeding Systems?
A mechanical feeding system is equipment that takes bulk parts and delivers them one by one, in an ordered stream, or in a set quantity to the next production stage. It solves a basic problem: loose fasteners are nearly impossible to present consistently to assembly, inspection, weighing, or packaging equipment without controlled storage, movement, and separation.
Feeding often gets grouped with related functions, but each one does a different job:
- Feeding moves parts toward a process
- Orientation puts parts into a set position
- Singulation separates a mass of parts into individual units
- Inspection checks that parts meet requirements
- Escapement releases parts at a controlled interval
Mechanical feeding is not limited to vibration. It is also not the same as robotic picking, manual loading, or a plain conveyor with no part-control features.
Common system categories include:
- Vibratory bowl feeders
- Centrifugal or rotary feeders
- Step feeders
- Hoppers
- Linear tracks
- Belt conveyors
- Escapements
Many production lines combine several of these in sequence. The right mix depends on the part.
Threaded fasteners, flat washers, stamped clips, and irregular hardware often need different contact surfaces, tooling, orientation methods, and transfer paths. A washer that slides cleanly down a chute can still interlock with another washer of the same size, which forces a different tooling approach.

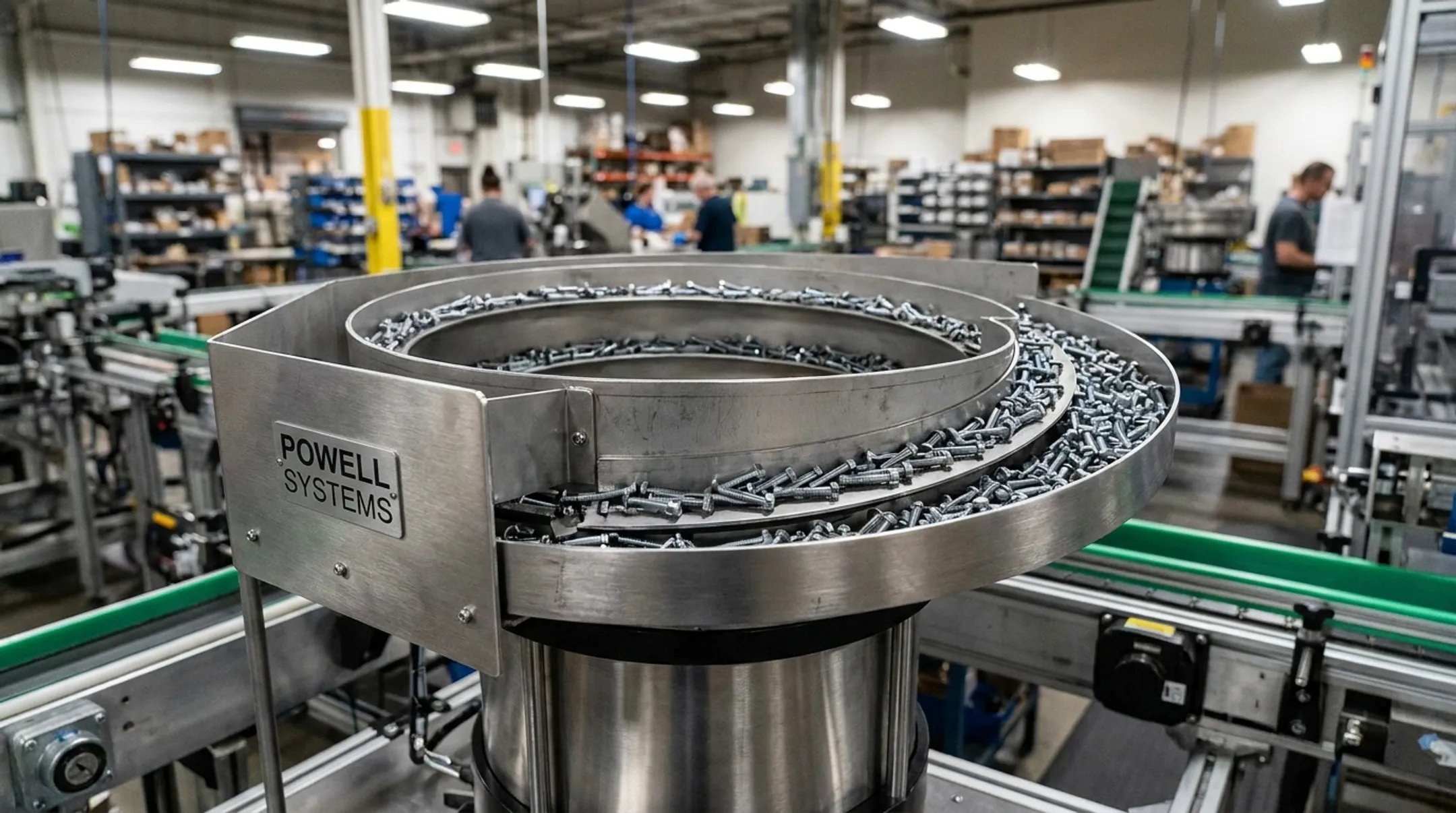

Powell Systems addresses that challenge with SKAKO Vibration Feeders, designed for interlocking, hard-to-feed hardware and built with an open design that moves parts gently.
How Do Mechanical Feeding Systems Work?
A feeding system functions as a sequence: bulk parts are supplied, advanced, oriented, separated, regulated, and discharged to whatever comes next. Each stage depends on the one before it.
Initiation: Supplying Bulk Fasteners
Fasteners typically start in a hopper, bin, bowl, or other reservoir. The supply device keeps the primary feeder stocked without flooding it. That balance matters more than it sounds.
Supply can be manual, automated, level-controlled, intermittent, or continuous, depending on line design and production volume. A batch operation might refill by hand a few times per shift. A high-volume line often uses automated bulk loading instead.
Common dependencies at this stage:
- Maintaining a suitable part level (too low starves the feeder; too high causes bridging)
- Preventing bridging or nesting of parts in the hopper
- Avoiding excessive impact that deforms or scratches components
Powell Systems uses Skako Lift Tippers for bulk loading on its hardware packaging systems, chosen specifically for gentle product handling during that initial transfer from bulk storage into the feeding equipment.
Core Operation: Moving Parts Through the Feeder
Once supplied, parts need to actually move. The mechanics vary by feeder type, but the underlying goal is the same: advance parts while filtering out anything in the wrong position.
- Vibration advances parts along a track using an angled motion vector.
- Rotating discs carry parts outward toward a perimeter, where tooling selects orientation.
- Stepped plates lift parts incrementally, reducing hopper friction compared to a fully vibrating bowl.
Feeder tooling, rails, chutes, belts, and contact surfaces guide fasteners while rejecting or returning parts in unsuitable positions. Throughput, spacing, orientation accuracy, noise, and the risk of scratching or tangling all factor into how a feeder is tuned.
A 30-inch vibratory bowl documented in an ASSEMBLY report on vibratory feeders fed 300 parts per minute in an automated assembly setup. That figure is a useful reference point, though actual rates depend heavily on part geometry.
Powell's AWC Series applies this principle directly, moving product over one or several vibratory feed pans into a weigh hopper for accurate, continuous throughput.
Different feeder types fit different jobs:
- Vibratory bowls suit small components that need orientation
- Centrifugal feeders handle high-speed movement for suitable geometries
- Step feeders elevate parts with less vibration, which matters for coated or delicate finishes
- Linear tracks or conveyors bridge the gaps between stages
Regulation and Control: Separating and Timing the Flow
Moving parts is only half the job. They also need to leave the feeder at the right time, in the right quantity. Level controls, sensors, escapements, gates, and speed adjustments regulate exactly that.
Singulation prevents overlapping parts, double-feeding, gaps in the stream, and uncontrolled discharge before assembly, inspection, weighing, or packaging. Without it, downstream equipment either starves or jams.
Ongoing control and maintenance checks typically include:
- Monitoring part presentation for consistency
- Clearing buildup on tooling or tracks
- Verifying alignment after changeovers
- Adjusting tooling when a new fastener design is introduced
The right control method depends on part dimensions, contact tolerance, the required delivery pattern, and whether the downstream machine needs individual parts, batches, or a continuous stream. Powell's ASA Weigh Filler handles this with PLC control. That setup supports quick changeovers and low-supervision operation when a line runs multiple fastener sizes across a shift.
Output and Downstream Result
The defined outcome is clear: fasteners arrive at a specific location, orientation, spacing, or quantity, ready for the next process. That output might feed an assembly station, a counting or inspection system, an automatic net-weigh filler, a packaging line, or a broader material-handling process.
Consistent output translates into fewer manual presentation steps, more predictable machine cycling, better packaging consistency, and easier troubleshooting when something does go wrong.
A documented fastener kit automation case from Imanpack illustrates the full sequence well. Components feed through vibrating bowls, get separated on belt conveyors, and are counted by photocells. Completed kits then transfer via bucket conveyor into packaging, with a checkweigher verifying final package weight.

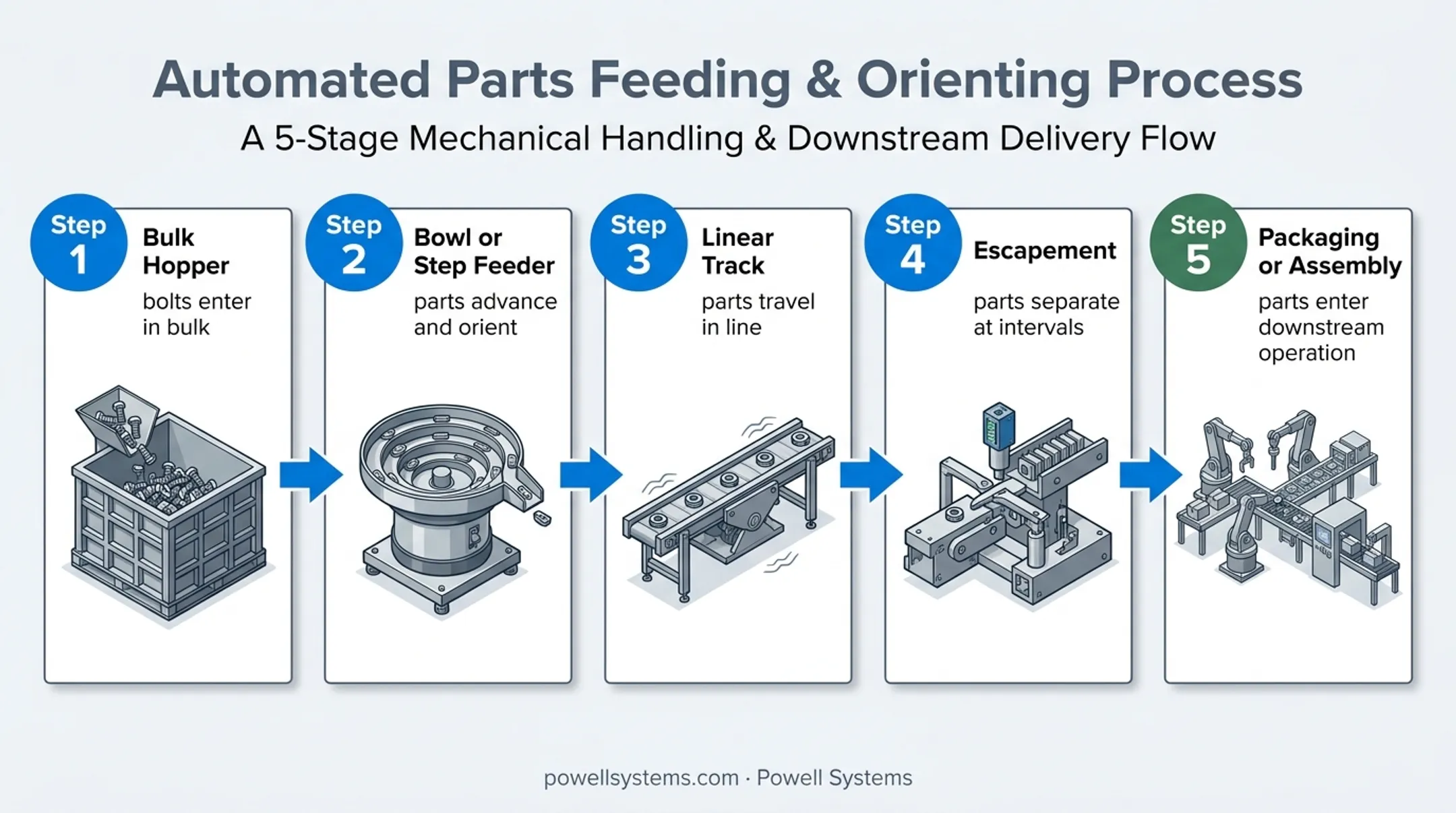

A comparable end-to-end path looks like this: bulk bolts enter a hopper, move through a bowl or step feeder, travel along a linear track, get separated by an escapement, and then enter a packaging or assembly operation. Each stage hands off a more refined version of the same bulk supply.
Where Are Mechanical Feeding Systems Used for Fasteners and Hardware Parts?
Feeding typically sits right after bulk storage and right before assembly, inspection, counting, weighing, packaging, or shipping prep. It's the connective tissue between "parts exist in bulk" and "parts are usable."
Industries relying on this equipment include:
- Fasteners and stampings
- Automotive and heavy truck
- Steel and aluminum
- Forgings and castings
- Oil and gas
- Heavy construction
System design shifts with operating conditions:
- Small parts need different tooling than large castings
- Smooth geometries feed differently than irregular stampings with burrs or flash
- High-volume lines tolerate different tooling wear than batch runs
- Nesting or tangling parts—spring clips, interlocking washers—often need slower, gentler handling
One documented ASSEMBLY case shows this scaling with forged parts. A bowl feeder handled cylindrical forgings between 34mm and 40mm in diameter. An elevator and hopper stored 1,500 parts, triggered refills from bowl level, and tooling rejected incorrectly oriented pieces automatically.
When evaluating equipment, bring:
- Part drawings and physical samples
- Dimensions, tolerances, and weight
- Center of gravity and surface finish
- Orientation requirements and target rate
- Noise limits and cleaning needs
- Downstream machine interface details

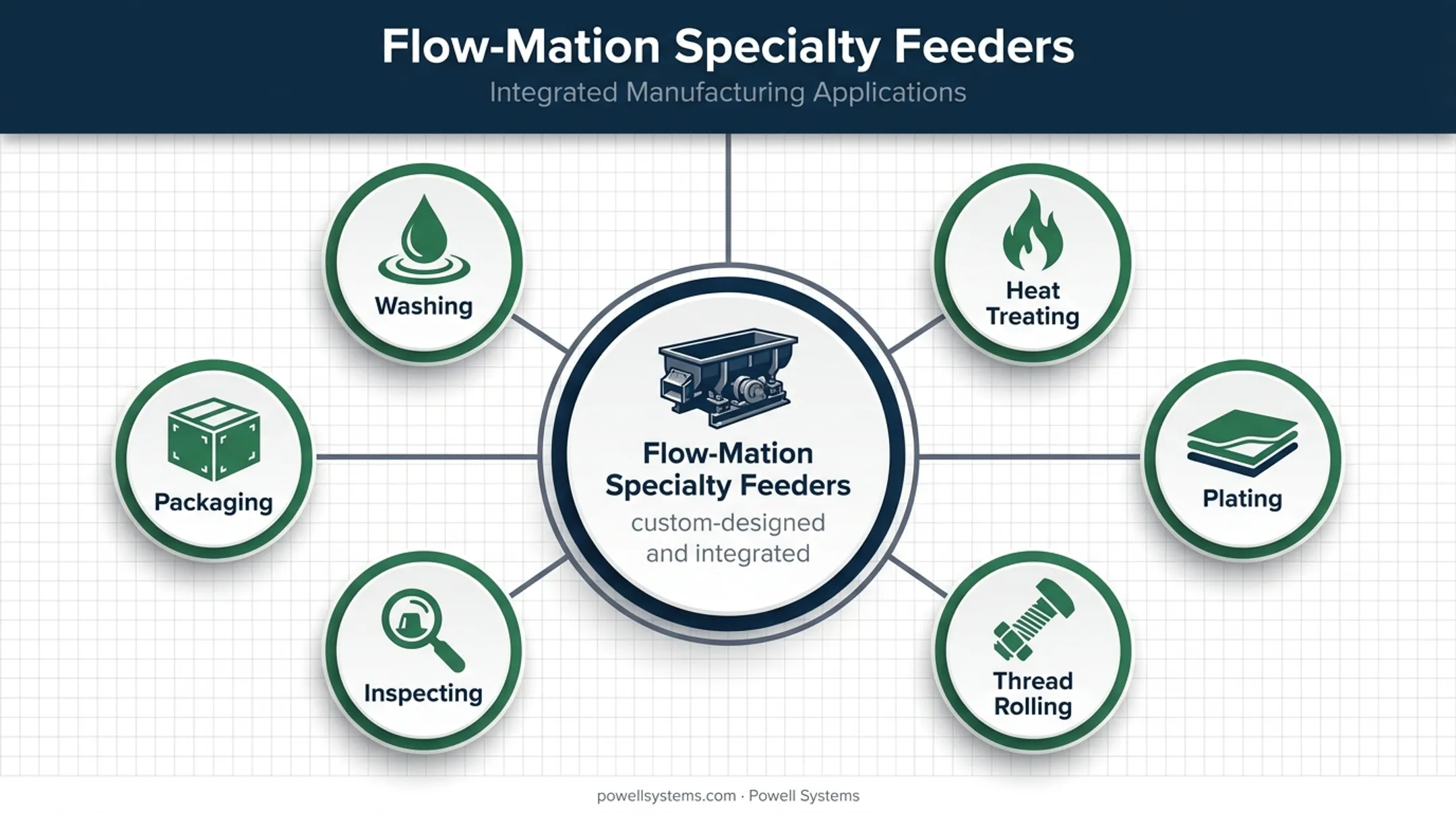

Powell Systems' Flow-Mation Specialty Feeders are built around this variability. They are custom-designed and integrated with existing production equipment to feed screws, fasteners, stampings, and forgings into washing, heat treating, plating, thread rolling, inspecting, or packaging operations.
These systems match the application with gravity-feed containers, dumpers, lift tippers, and lift truck rotators based on what the part and line require. Custom workstations and steel material-handling equipment often support the broader line, connecting bulk storage to feeding without manual transfer steps.
Conclusion
A mechanical feeding system does more than move parts from point A to point B. It manages the entire progression from bulk supply to correctly presented, individually usable fasteners — coordinating storage, movement, orientation, separation, control, and discharge along the way.
Getting this right starts with the part, not the equipment. Before settling on a feeder design, assess:
- Part characteristics
- Production workflow
- Downstream requirements
- Automation level your line actually needs
The wrong starting point compounds downstream in jams, inconsistent counts, or packaging errors that trace back to how the parts were fed.
Frequently Asked Questions
What feeding mechanisms are used in mechanical feeding?
Common mechanisms include vibration, centrifugal motion, stepped elevation, gravity, belts, hoppers, tracks, gates, and escapements. Most production lines combine several of these mechanisms rather than relying on just one.
What are the types of mechanical feeders?
Main types include vibratory bowl, centrifugal or rotary, step, hopper, linear, and belt feeders, plus application-specific designs. Choose based on part geometry, weight, and handling needs.
What is automatic feeding?
Automatic feeding is the controlled delivery of parts from bulk supply to a machine or workstation with little or no manual handling. It typically includes movement, orientation, separation, and timing where the process requires it.
How do mechanical feeders orient fasteners?
Shaped tooling, tracks, rails, gravity, vibration, and rotation guide fasteners into the required position, sometimes supported by vision-based checks. Misoriented parts are typically rejected or recirculated rather than passed downstream.
What factors affect fastener feeder performance?
Performance depends on part geometry, size, weight, surface finish, and tendency to tangle or nest, plus tooling condition and feeder settings. The downstream process requirements also shape how the feeder needs to be configured.
