Introduction
Automated material handling and packaging lines depend on one quiet workhorse: the weigh hopper. It measures a controlled quantity of bulk product before that product moves into a package, container, or the next stage of production.
IQF food and fastener packaging lines feel this pressure every shift. A missed target weight means underfilled bags, wasted product, or compliance headaches. Manual weighing simply can't keep pace with automated lines.
A weigh hopper is more than a container sitting on a scale. It combines material holding, weight sensing, control logic, and discharge into one coordinated system.
This article breaks down what a weigh hopper actually does, then walks through how Powell Systems' AWC Series puts that logic to work.
Key Takeaways
- A weigh hopper holds material temporarily while load cells measure its weight.
- Basic cycle stages cover filling, stabilizing, confirming target weight, and discharging.
- AWC Series systems automate weigh filling with vibratory feed pans and microprocessor control.
- Calibration, mechanical installation, and material flow all affect weighing consistency.
- Correct product matching cuts manual handling and keeps packaging output steady.
What Is a Weigh Hopper?
A weigh hopper is a vessel supported by weighing components, usually load cells, that measures material by detecting the force exerted by the material and hopper assembly. The National Institute of Standards and Technology defines a hopper scale as a scale for bulk commodities whose load-receiving element is a tank, box, or hopper mounted on a weighing element.
On packaging lines, manual portioning is slow, inconsistent, and hard to sync with conveyors, feeders, and sealers. A weigh hopper closes that gap with a repeatable, machine-readable weight signal.
Tare, Gross, and Net Weight
The control system has to separate the hopper's own weight from the product inside it. Under OIML R 76-1, gross value is the load reading with no tare applied, tare value is the weight of the empty container, and net value equals gross minus tare. In plain terms: the system subtracts the hopper's weight so the displayed number reflects only the product.
What a Weigh Hopper Isn't
- Storage hopper — holds material but doesn't measure it.
- Volumetric feeder — dispenses by volume or count, not force-based weight.
- Platform scale — weighs static loads placed on it, not material flowing through a controlled fill-and-discharge cycle.
Core Components
- Hopper body — receives and temporarily contains product during the weigh cycle.
- Load cells — convert the supported load into an electrical signal.
- Feed equipment — meters product in, using conveyors, vibratory feeders, or screw feeders.
- Discharge equipment — gates or valves that release weighed product downstream.
- Controls — track weight, detect target, and coordinate the whole sequence.
Some systems weigh material as it enters the hopper (gain-in-weight); others weigh it as it leaves (loss-in-weight). The physical sequence and control logic shift depending on which arrangement is used.

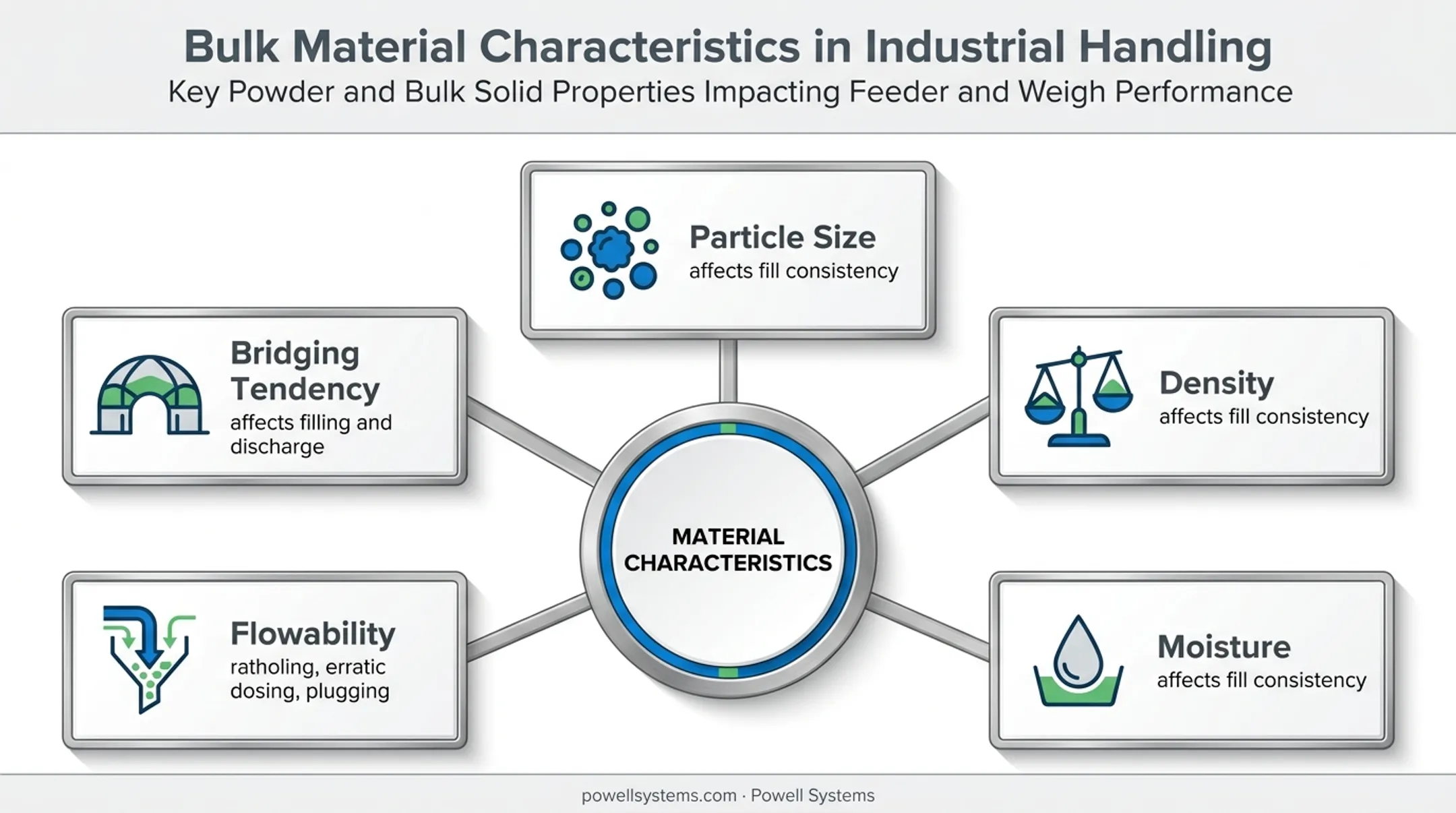

Material characteristics matter as much as the mechanics. Particle size, density, moisture, flowability, and bridging tendency all affect how consistently a hopper fills and discharges.
Jenike & Johanson notes that poor flowability can cause:
- Ratholing or arching
- Erratic dosing
- Fine-particle plugging
Any hopper design recommendation should come from testing the actual material, not a generic assumption.
How Does the AWC Series Work?

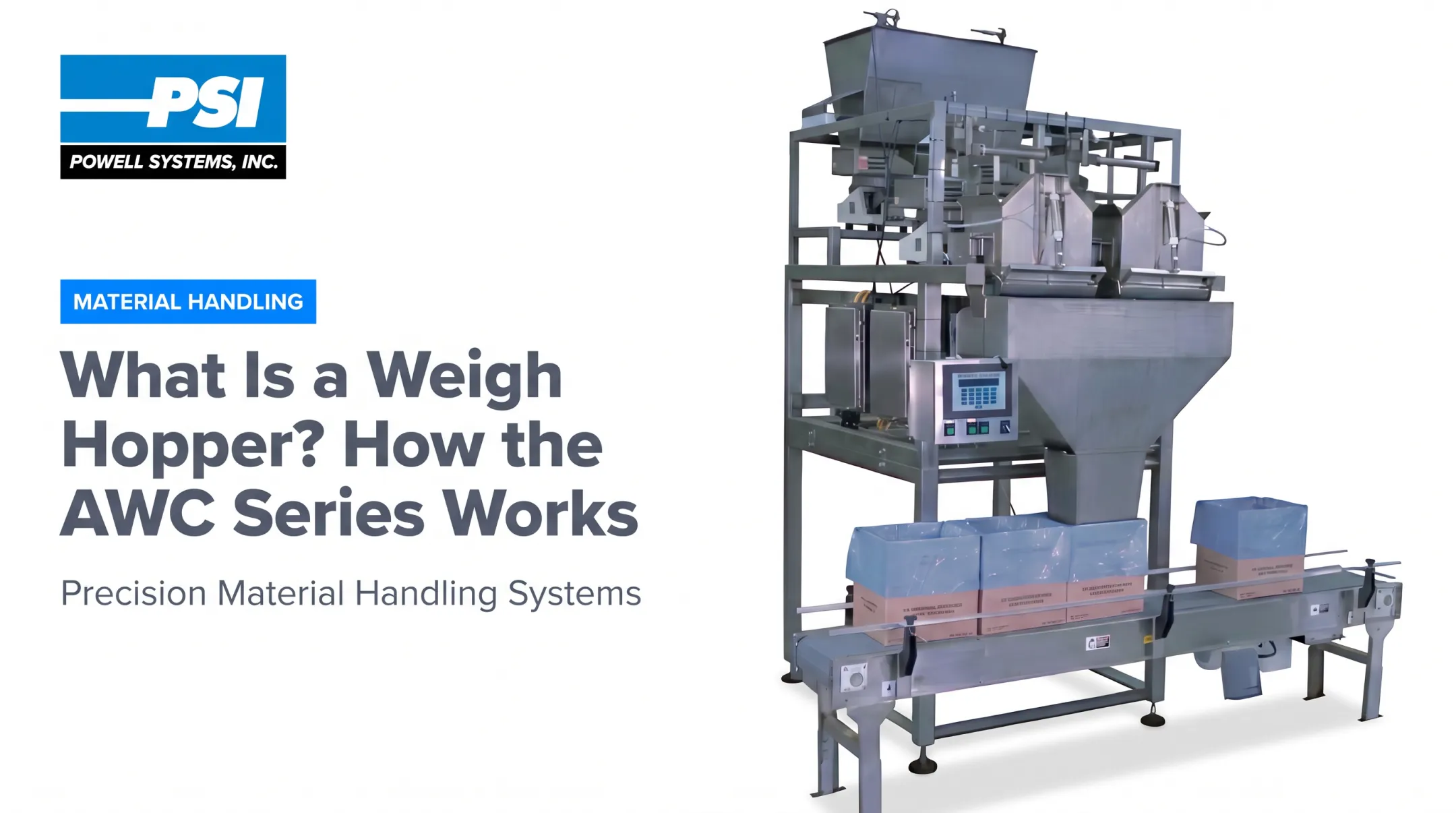

The AWC Series, short for Automatic Weighing and Control, follows a straightforward sequence: receive product, measure a target quantity, confirm the weight, then discharge into the selected package. Powell Systems built this system specifically for fastener and IQF food packaging lines that need speed without sacrificing weight accuracy.
Initiation and Product Feed
Product moves over one or more vibratory feed pans into the AWC weigh hopper. Multiple feed pans allow the system to handle higher volumes or split feed streams depending on the line's layout.
Because feed relies on vibratory motion, product characteristics matter here too. Anything that moves reliably over a vibratory pan is a candidate for the AWC Series. Inconsistent upstream supply or bridging in a feed bin can still disrupt this stage, so upstream equipment needs to keep pace with the hopper's demand.
Weighing and Measurement
Once product lands in the hopper, one or two strain-gauge load cells detect the changing load and send that signal to a microprocessor. The controller tracks the running weight against the programmed target for that batch.
Net weight is the key metric here. The system already knows the hopper's empty weight (tare), so it calculates net product weight continuously as material accumulates. A stable reading matters here. Vibration from the feed pan itself, airflow, or contact with nearby equipment can distort a live signal if the mechanical installation isn't solid.
Control and Cutoff
When the load hits the programmed weight, the AWC controller stops the vibratory feed. The system does not use a separate confirmation delay. Cutoff happens as soon as the target is detected.
Feed rate and material behavior matter most at the finish. A slower feed rate near target weight typically means tighter accuracy, since less material is "in flight" when the cutoff signal fires.
Discharge and Package Handoff
Once the target weight registers, the hopper dumps its contents into a bag, box, or other selected container. Powell Systems states that AWC Series packages will never be underweight, with giveaway averaging less than 1/8 ounce for smaller pieces.
Complete discharge matters for more than just that one batch. Leftover material in the hopper would distort the tare reading for the next cycle, throwing off every batch that follows.
Repeat Cycle and Operational Results

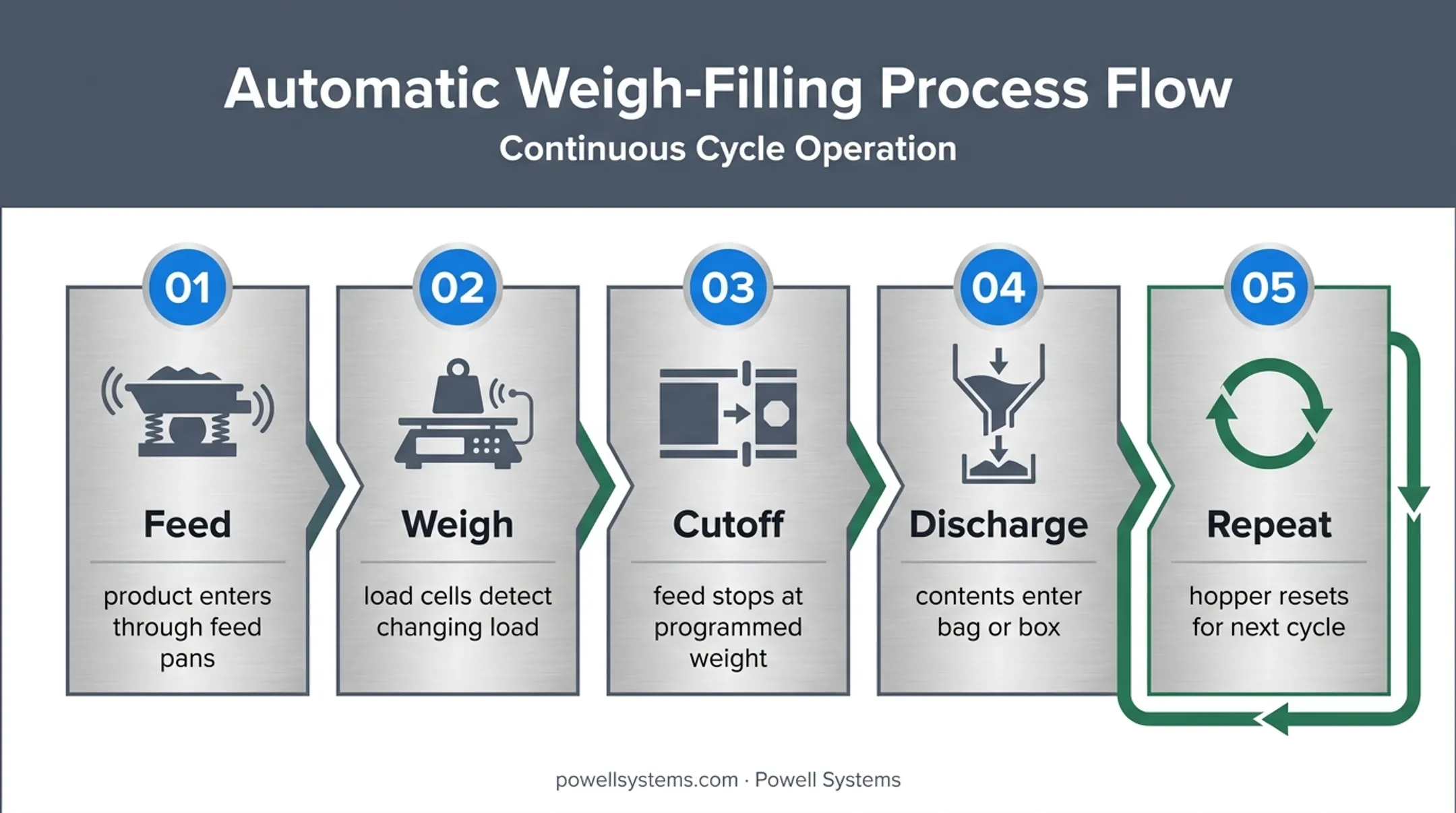

After discharge, the hopper resets and the cycle starts again: feed, weigh, cutoff, discharge, repeat. This is the mechanism behind consistent package weights without an operator manually weighing and transferring each batch.
Practical operating details from Powell Systems' documentation:
- Package weight range: less than 1 lb to over 50 lbs, for fresh, frozen, or dry products.
- Supports quick changeover between package sizes and types.
- Piece-count packaging available for products with uniform piece weight.
If you need an automated net weigh approach for a specific product, Powell Systems recommends application guidance over generic specs. Every product behaves differently on a vibratory feed pan.
Where Weigh Hoppers Are Used
A weigh hopper typically sits in the middle of a packaging workflow: bulk supply, controlled feeding, weighing, discharge into a package, then sealing or shipment. Where it fits exactly depends on the product and the line.

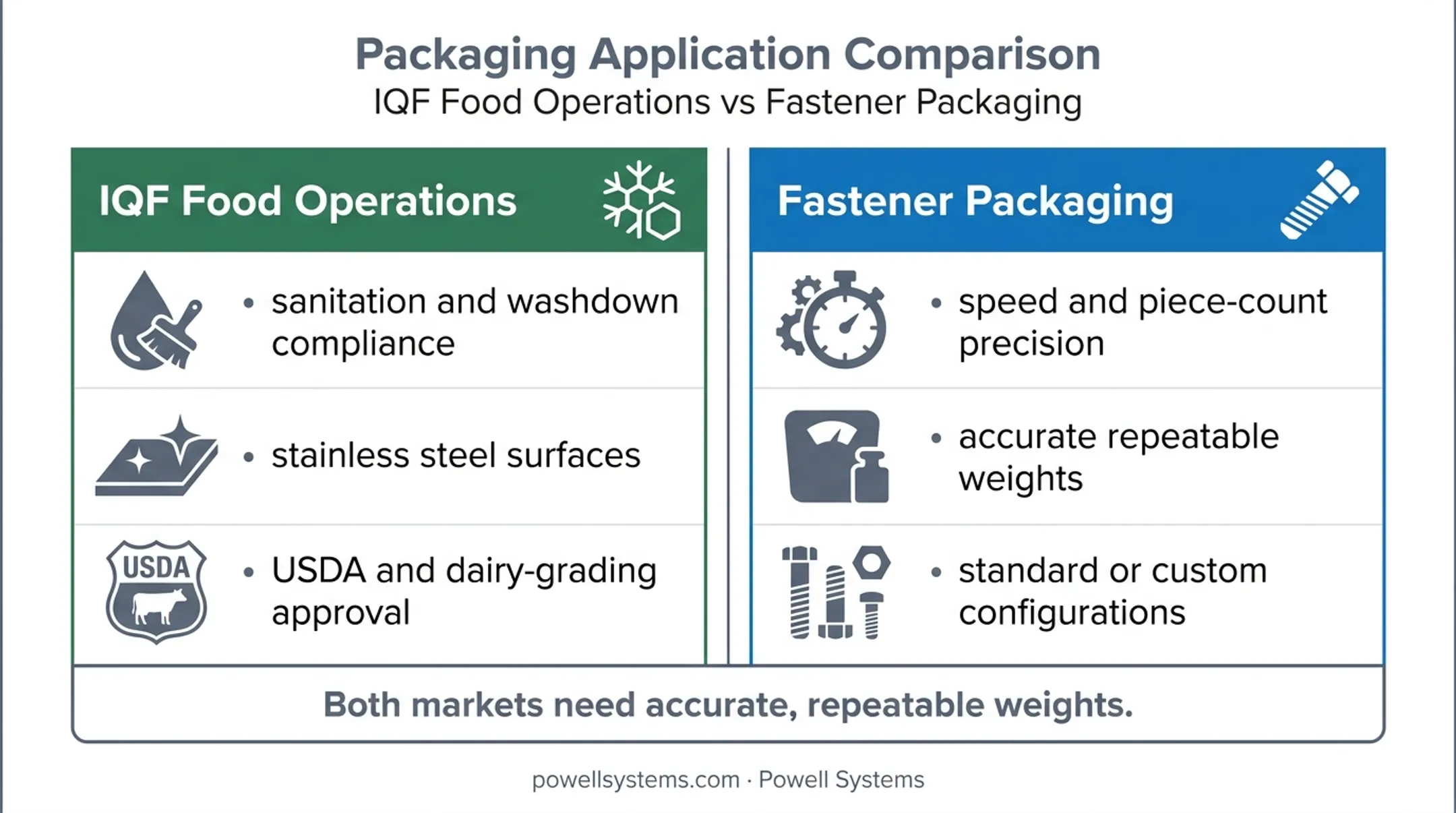

Powell Systems builds the AWC Series for two markets in particular: IQF food operations and fastener packaging. Both need accurate, repeatable weights, for different reasons. Food operations need sanitation and washdown compliance; fastener lines need speed and piece-count precision.
Which configuration fits your line depends on a few application factors.
What Should Guide Equipment Selection
- Product properties: flowability, density, particle size, moisture, and whether the product is fragile or sticky
- Weight range and package type: bags, boxes, or other containers, plus the target fill weight per unit
- Sanitation requirements: cleanability, washdown resistance, and material compatibility for food-grade lines
On that last point, the AWC Series uses stainless steel surfaces rated for high-pressure washdown, and each system carries USDA and dairy-grading approval—relevant for IQF and dairy packaging lines specifically.
Standard and custom AWC configurations are available, but not every setup fits every application. Product testing and application review are still required to match the hopper to your product and line.
Conclusion
A weigh hopper is an integrated system that brings together a material vessel, a weighing mechanism, a feeder, a discharge point, and controls to produce repeatable, measured quantities of product.
The AWC Series follows that same logic in a specific sequence: feed, weigh, cutoff, discharge, repeat. Getting consistent results out of that cycle depends on correct configuration, solid mechanical installation, and calibration matched to the actual product running through it.
Before selecting a weigh hopper system, compare your product's characteristics against your package requirements, control needs, and maintenance expectations. Powell Systems offers application-specific guidance for facilities evaluating the AWC Series for fastener or food packaging lines.
Frequently Asked Questions
Which weighing scale is more accurate?
Accuracy depends on scale type, load range, resolution, calibration, and installation, not on one "best" scale. A weigh hopper suited to a specific batch size and material will typically outperform a general-purpose or volumetric scale for that same task.
What are the three types of weighing scales?
There's no single universal three-type classification, but one common grouping includes platform scales, hopper or vessel scales, and belt or conveyor weighing systems. Classifications vary depending on the application and regulatory framework in use.
What is the purpose of a weigh hopper?
A weigh hopper temporarily holds bulk material, measures it by weight using load cells, and releases a controlled quantity into packaging or a downstream process. It combines holding, sensing, and discharge into one coordinated function.
How does a weigh hopper measure material?
Load cells sense the force from the material and hopper and convert it into a signal the control system reads. The system subtracts tare weight from the gross reading to get net product weight, then stops feed once that reading stabilizes at target.
How often should a weigh hopper be calibrated?
Calibration frequency depends on usage, material characteristics, and regulatory or quality requirements in your industry. Recalibrate after maintenance, relocation, an overload event, or any unexplained drift in readings.
